Sherwood Aluminium Board Steel Frame Garden Gate

Sherwood Aluminium Board Steel Frame Garden Gate
Our Price:  £340.00(Inc. 20% VAT)(£283.33 Exc. VAT)

Brand:  Calder Gates

Steel Metal Garden Gate PostSteel Metal Garden Gate Post

This is our stunning metal framed/ aluminium infill board Sherwood garden gate. This is a great alternative to a completely wooden gate as it still gives the privacy but will not twist, sag or rot like a traditional wooden gate due to the strong metal frame and durable, maintenance free aluminium infill boards .

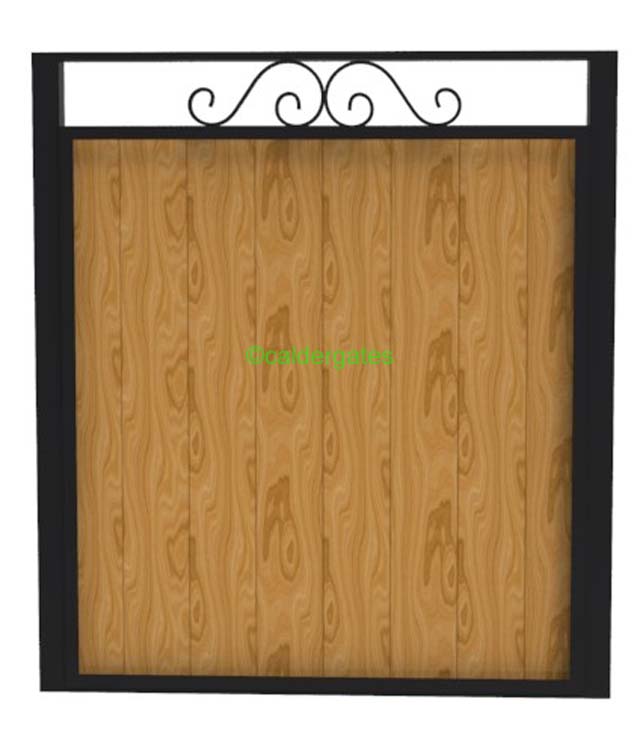

Note:  The main picture shown is of our standard wood infill Sherwood side gate and not the aluminium infill. Please view the last picture (no 2) for a close up of the light oak finish.



  • 1 metre tall.
  • Painted black with optional galvanised rust protection.
  • Lockable with a padlock (not included)
  • 40x12mm convex top bar.
  • 40mm box section sides
  • 25x5mm flat bar inner frame.
  • 100mm wide x 19mm aluminium board.
  • Supplied with adjustable hinges,catch and fixing bolts.
  • Supplied with 2 x wall mounted fixing posts 1060mm long

  • The Widths listed is the gap you have between your walls or posts, we then work out of the size of the gate.
    If you need gate posts, remember to allow space for these.
    Gate height is measured from the bottom of the frame to the highest point on the gate.
  • Don't forget to allow for ground clearance too - typically 60mm.

  • Can be made any size or altered in any way - just ask!

    Galvanising option and Finish

    We offer you a choice of finish on all our gates.

    Hot dipped galvanising is the best possible way to rust proof metal work and can last up to 100 years depending on where in the UK you are. Please click here to see your areas corrosion rate here.

    We recommend that you do galvanise your gate so that you can enjoy our gates for many decades to come.

Measuring Guide and Delivery Times



Before you complete your purchase for your gates or railings you need to make sure that you are ordering the correct size.

The widths shown are the size between your posts or pillars and NOT the actual size of the gate or railing.

To work out the size needed you will need to measure (as accurately as possible) the distance between your posts or pillars and this is the size / width that you will need to order.


The heights of the gates and railings shown are the actual height, measured from the bottom to the highest point of the gate or railing. When checking the height of the item needed please do not forget to allow for ground clearance, typically 6cm for gates and 4cm for railings.

If you are having any trouble working out the size required please contact us – we are always happy to help.

Hanging side:

When ordering a gate, please let us know if you require:

-    The gate to be hung from the left or the right

-    Opening inward or outward (when looking from the outside of the property in)

Please place this information in the “messages” section of the checkout.  If no message is left, the gate will be made to hang off the left opening inwards.

Delivery times:

As most of our items are handmade to order in our workshop, from receiving cleared payment the (approximate) delivery times are as follows:

Just painted gates and railings – 5 to 10 working days.

Galvanised and painted gates and railings – 20 to 27 working days.

For larger items (such as gates and railings) you will be contacted when your item is ready to ship to arrange a delivery date. For smaller items we will not contact you, your item will be shipped as soon as it is ready.


If you have any questions please feel free to contact us.


The Calder Gates team.

Be the first to Write a Review for this item!



Knotwood aluminium infill alternative for steel framed gates.


We are now offering a Knotwood aluminium wood alternative to our standard pressure treated wood infill on our gates. Knotwood is a wood grain effect aluminium, it has the same look of wood without the maintenance - No swelling or warping, no fading, no splitting and no rusting. It has been developed in and manufactured for the harsh conditions of Australia and is supplied with a 10 year manufacturers warranty.

Knotwood boasts the low maintenance and high durability qualities of aluminium, in addition to the natural beauty and warm textured feel of wood.

Put your mind at ease knowing that Knotwood is the highest quality wood grain finish available.

Please be aware that Knotwood contains natural colour variation consistent with that of real wood.

Our standard Knotwood finish is Light Oak, although we are usually able to source any of the finishes on the chart below. The material thickness we use us a 100mm wide x 16mm thick hollow section.
