Sherwood Wood Infill / Metal Side Entry Gate

Sherwood Wood Infill / Metal Side Entry Gate
Sherwood Wood Infill / Metal Side Entry GateSherwood Wood Infill / Metal Side Entry GateSherwood Wood Infill / Metal Side Entry Gate
Our Price:  £525.00(Inc. 20% VAT)(£437.50 Exc. VAT)

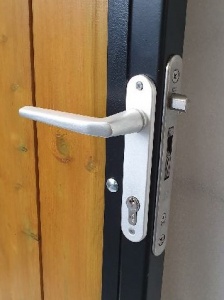

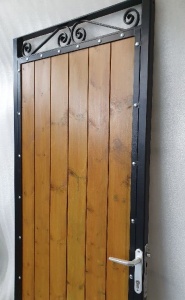

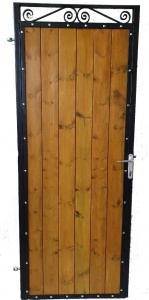

This is our stunning Sherwood  metal frame / wood infill side entry gate. The gate has a built in locinox lock which can be operated from either side and the wood is inserted into the gate frame and is easily removable when needed to be replaced.

This is a great alternative to a completely wooden gate as it still gives the privacy but will not twist or sag like a traditional wooden gate due to the strong metal frame .

Powder coated - zinc rich primer and black topcoat as standard or optional galvanising prior to powder coating for an anti rust finish

Note: All timber used in our gates is now pressure treated and stained 3x coats to extend the life of the wood.

  • 6ft (1.83m) or 7ft (2.13) tall – please select size below.
  • Locinox lock and catch included
  • 40x12mm convex top bar.
  • 40mm box section sides
  • 25x5mm flat bar inner frame.
  • 115mm wide x 19mm thick pressure treated wood.
  • The wood is pressure treated and 2 coats of medium oak stain applied.
  • Powder coated black - other colours available just ask!
  • Supplied with wall mounted fixing posts.
  • Supplied with adjustable hinges and fixing bolts.
  • The Widths listed are the gap you have between your walls or posts, we then work out of the size of the gate.
    If you need gate posts, remember to allow space for these.
    Gate height is measured from the bottom of the frame to the highest point on the gate.


    Don't forget to allow for ground clearance too - typically 60mm.

Measuring Guide and Delivery Times



Before you complete your purchase for your gates or railings you need to make sure that you are ordering the correct size.

The widths shown are the size between your posts or pillars and NOT the actual size of the gate or railing.

To work out the size needed you will need to measure (as accurately as possible) the distance between your posts or pillars and this is the size / width that you will need to order.


The heights of the gates and railings shown are the actual height, measured from the bottom to the highest point of the gate or railing. When checking the height of the item needed please do not forget to allow for ground clearance, typically 6cm for gates and 4cm for railings.

If you are having any trouble working out the size required please contact us – we are always happy to help.

Hanging side:

When ordering a gate, please let us know if you require:

-    The gate to be hung from the left or the right

-    Opening inward or outward (when looking from the outside of the property in)

Please place this information in the “messages” section of the checkout.  If no message is left, the gate will be made to hang off the left opening inwards.

Delivery times:

As most of our items are handmade to order in our workshop, from receiving cleared payment the (approximate) delivery times are as follows:

Just painted gates and railings – 5 to 10 working days.

Galvanised and painted gates and railings – 20 to 27 working days.

For larger items (such as gates and railings) you will be contacted when your item is ready to ship to arrange a delivery date. For smaller items we will not contact you, your item will be shipped as soon as it is ready.


If you have any questions please feel free to contact us.


The Calder Gates team.

Be the first to Write a Review for this item!



Knotwood aluminium infill alternative for steel framed gates.


We are now offering a Knotwood aluminium wood alternative to our standard pressure treated wood infill on our gates. Knotwood is a wood grain effect aluminium, it has the same look of wood without the maintenance - No swelling or warping, no fading, no splitting and no rusting. It has been developed in and manufactured for the harsh conditions of Australia and is supplied with a 10 year manufacturers warranty.

Knotwood boasts the low maintenance and high durability qualities of aluminium, in addition to the natural beauty and warm textured feel of wood.

Put your mind at ease knowing that Knotwood is the highest quality wood grain finish available.

Please be aware that Knotwood contains natural colour variation consistent with that of real wood.

Our standard Knotwood finish is Light Oak, although we are usually able to source any of the finishes on the chart below. The material thickness we use us a 100mm wide x 16mm thick hollow section.
