Arched Top Metal Driveway Gate With Wood Infill

(Inc. 20% VAT)
(£991.67 Exc. VAT)
Product Specification

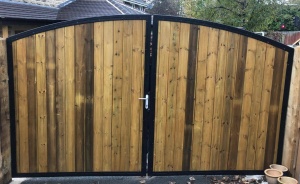

Arched wood infill steel frame estate gates with built in lock

This is our stunning metal framed/wood infill arched top driveway gate with lock. The softwood tongue and groove wood is Tanalised and stained with 3 coats for superior durability and bolted to the metal gate frame, making it easy to remove when needed to be replaced. The steel frame is painted with zinc phosphate primer and black topcoat - we also offer hot dip galvanising for the ultimate protection from rust.

This is a great alternative to a completely wooden gate as it still gives the privacy but will not twist or sag like a traditional wooden gate due to the strong metal frame and pressure treated timber. The locinox fortylock hook lock is a premium gate lock designed for easy use and strong security.




  • 3ft 3" (1 metre) tall with approximate rise of 45cm.
  • Locinox fortylock hook lock included.
  • 40mm box section frame with 25x5mm flat bar inner frame to sandwich the wood in place.
  • 113mm wide x 19mm thick pressure treated softwood.
  • Wood pressure treated and coated in a medium oak stain.
  • Fully painted black  frame (high build vinyl paint) - optional galvanising to prevent rust
  • Supplied with wall mounted hinge posts (50mm square box) adjustable eyebolts and fixing bolts.

The Widths listed are the opening gap you have between your walls (if bolted in place) or concreted in posts - not the actual size of the gate, we then work out of the size of the gate.

If you need concreted in gate posts, remember to allow space for these.

Gate height is measured from the bottom of the frame to the top corner of the gate at the hinge side (1m) - the arch is an additional 45cm (approximate) bringing the total height the 145cm (approximate) in the centre.


Don't forget to allow for ground clearance too - typically 60mm.

Can Be made to any size - Please contact us for more info

  • Galvanising option and Finish

    We offer you a choice of finish on all our gates.

    Hot dipped galvanising is the best possible way to rust proof metal work and can last up to 100 years depending on where in the UK you are. Please click here to see your areas corrosion rate here.

    We do recommend that you do galvanise your gate so that you can enjoy our gates for many decades to come.

Important Information

Measuring Guide and Delivery Times



Before you complete your purchase for your gates or railings you need to make sure that you are ordering the correct size.

The widths shown are the size between your posts or pillars and NOT the actual size of the gate or railing.

To work out the size needed you will need to measure (as accurately as possible) the distance between your posts or pillars and this is the size / width that you will need to order.


The heights of the gates and railings shown are the actual height, measured from the bottom to the highest point of the gate or railing. When checking the height of the item needed please do not forget to allow for ground clearance, typically 6cm for gates and 4cm for railings.

If you are having any trouble working out the size required please contact us – we are always happy to help.

Hanging side:

When ordering a gate, please let us know if you require:

-    The gate to be hung from the left or the right

-    Opening inward or outward (when looking from the outside of the property in)

Please place this information in the “messages” section of the checkout.  If no message is left, the gate will be made to hang off the left opening inwards.

Delivery times:

As most of our items are handmade to order in our workshop, from receiving cleared payment the (approximate) delivery times are as follows:

Just painted gates and railings – 5 to 10 working days.

Galvanised and painted gates and railings – 20 to 27 working days.

For larger items (such as gates and railings) you will be contacted when your item is ready to ship to arrange a delivery date. For smaller items we will not contact you, your item will be shipped as soon as it is ready.


If you have any questions please feel free to contact us.


The Calder Gates team.
